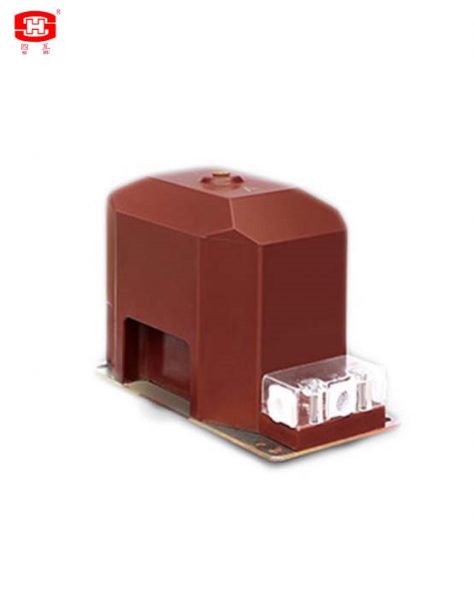

Epoxy resin insulated voltage inductive voltage transformers, we have without fuse type, fused type, V-connection type, Y-connection type, plateaus type, pole-mounted type and post type and so on. They are widely used in various switchgears of power grid, power plants, substations, railway, and coal mining industries and so on.
Epoxy resin insulated voltage inductive voltage transformers, we have without fuse type, fused type, V-connection type, Y-connection type, plateaus type, pole-mounted type and post type and so on. They are widely used in various switchgears of power grid, power plants, substations, railway, and coal mining industries and so on.
|
Rated Primary Voltage (kV) |
Rated Secondary Voltage (kV) |
Residual Winding Rated Voltage (kV) |
Accuracy Classes |
Rated Outputs (VA) cosΦ=0.8 |
Total Limited Output (VA) |
|
6/√3 6.6/√3 10/√3 11/√3 |
0.1/√3 0.11/√3 0/115/√3 0.12/√3 |
0.1/3 0.11/3 0.115/3 0.12/3 |
0.2/6P | 30/50 | 600 |
| 0.5/6P | 80/50 | ||||
| 1.0/6P | 180/50 | ||||
| 0.2/0.2/6P | 15/15/50 | ||||
| 0.2/0.5/6P | 15/20/50 | ||||
| 0.5/0.5/6P | 40/40/50 |
Note: The data listed in the above table are the normal ones, or we can design them according to the customers’ special requirements.

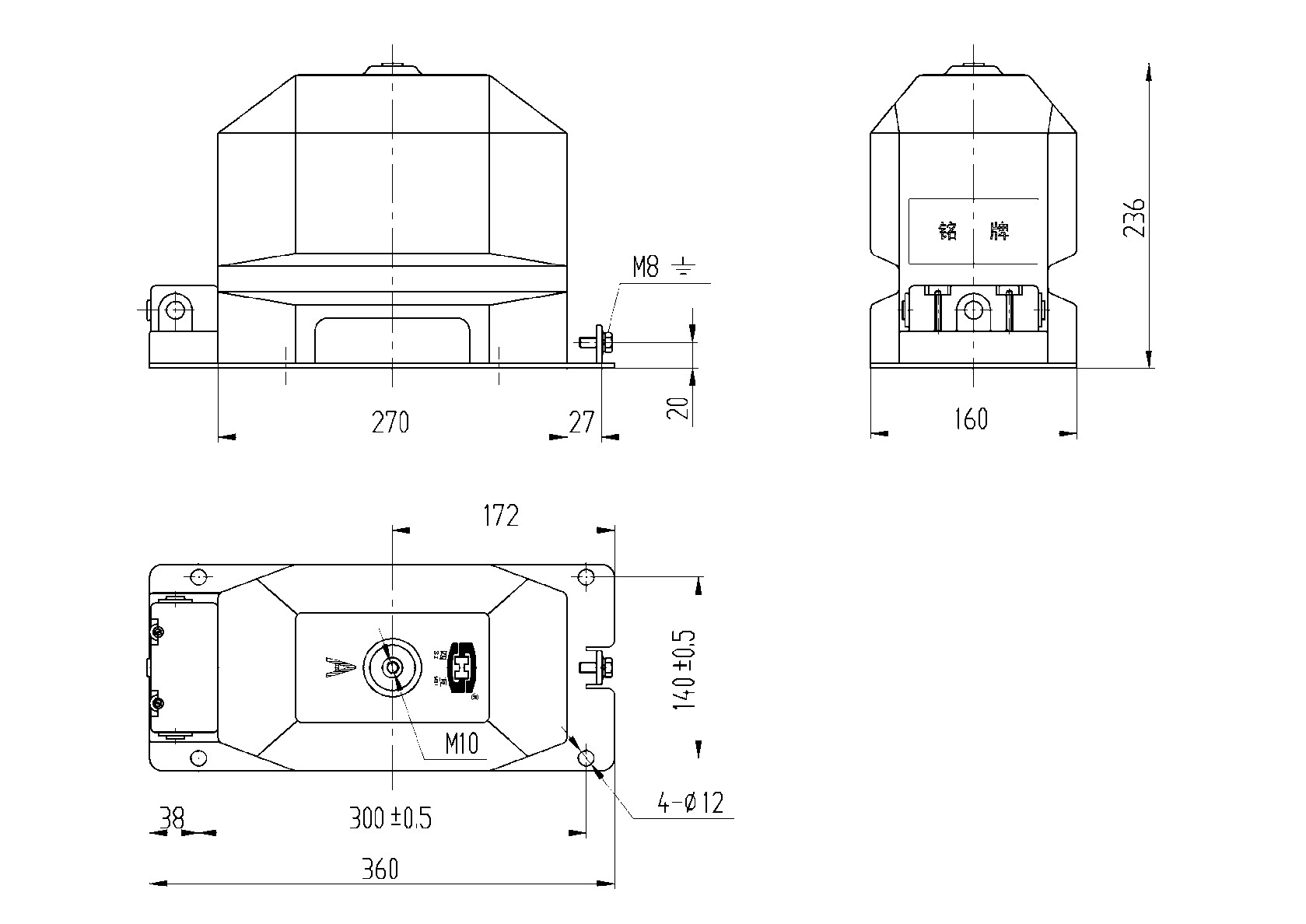

4 Outline drawing and installation dimensions
