    SF6 Gas Insulation Industrial distribution Inductive Voltage Transformer VT IVT PT Free-oil Manufactuer Factory price ISO9001 Inductive Voltage Transformers

    PRODUCT INTRODUCTION

    The inductive voltage transformers which the insulation material is SF6 gas. The bushing of the voltage transformer is made by silicon rubber or porcelain.

    PRODUCT DETAILS

    The inductive voltage transformers which the insulation material is SF6 gas. The bushing of the voltage transformer is made by silicon rubber or porcelain. There are some aluminium electrodes inside the voltage transformer, to improve the electric field distribution inside the voltage transformer. There is a pressure relief device at the top of the voltage transformer, when the pressure is more than 0.8MPa (1.0 MPa only for 500 kV) if the voltage transformer is discharge inside, the relief device will be broken to release the pressure and send an alarm information. There is a SF6 density monitor fix at the base, it can indicate the SF6 pressure which inside the voltage transformer (its indicated value is the SF6 pressure at 20℃), and it will provide an information when the SF6 pressure is drop down to the minimum service pressure of the current transformer, to remind the user replenish the SF6 gas to the rated pressure. The secondary terminals block is casted by epoxy resin, the frame of the secondary terminals box is a seal structure, it suits for outdoor.

    Guangdong Sihui Inductive Voltage Transformer

    一、Service Conditions :

    1. Ambient air temperature: maximum 40℃, minimum -40℃, average value of the ambient air temperature does not exceed 30℃ measured during a period of 24h.
    2.  Altitude: The altitude does not exceed 1000m (this is the routine requirement, if there is any different requirement, we can provide the products with 2000m, 3000m, 4000m or 5000m altitude according to the clients’ requriments).
    3.  The average value of the relative humidity does not exceed 95% at 25℃ measured during a period of one month.
    4.  The maximum wind speed does not exceed 34m/s.
    5.  Eerthquake intensity does not exceed 8 degree.
    6.  There have to be no gas that may seriously affect the insulation and conductive ability of electric equipments, steam, ash, salt, chemical deposit, pollution and corrosive or explosive material.

    二、Technical Parameters:

    1. Rated frequency is 50Hz or 60Hz
    2. Rated secondary voltage:
    3. Measuring secondary winding is 0.1/√3kV, 0.11/√3kV, 0.12/√3kV or 0.15/√3kV
    4. Protective secondary winding is 0.1/√3kV, 0.11/√3kV, 0.12/√3kV or 0.15/√3kV
    5. Residual voltage winding is 0.1kV, 0.11kV, 0.12kV, 0.15kV
    6. Rated operating pressure of gas SF6 is 0.40MPa (0.50 MPa only for 500 kV); Minimun operating pressure of the gas SF6 is 0.35MPa (0.45 MPa only for 500 kV).

    三、Rated output and relative accuracy class (cosφ=0.8 lag) please see table 1

    Table 1

    Winding

    Measuring Winding

    Protective Winding

    Residual Voltage Winding

    Winding

    Measuring Winding

    Protective Winding

    Terminals Marking

    Accuracy Class

    1a-1n

    2a-2n

    3a-3n

    Terminals Marking

    1a-1n

    2a-2n

    0.2

    0.5

    0.5

    Accuracy Class

    0.2

    0.5

    Rated Output (VA)

    100

    Rated Output (VA)

    100

    150



    150

    Winding

    75

    100



    75

    Measuring Winding

    Protective Winding

    Residual Voltage Winding

    Winding

    Measuring Winding

    Protective Winding

    Terminals Marking

    Accuracy Class

    1a-1n

    2a-2n

    3a-3n

    Terminals Marking

    1a-1n

    2a-2n

    0.2

    0.5

    0.5

    Accuracy Class

    0.2

    0.5

    Rated Output (VA)

    100

    Rated Output (VA)

    100

    150



    150

    Winding

    75

    100



    75

    Measuring Winding

    Protective Winding

    Residual Voltage Winding

    Winding

    Measuring Winding

    Protective Winding

     Note: Each thermal limit burden for protective winding is 2000VA.



    四、Arcing distance and creepage distance of outer insulation please see table 2.

    Rated voltage(kV)

    Arcing distance(mm)

    Creepage Distance (mm)

    Pollution Level (W1)

    Pollution Level (W2)

    Pollution Level (W3)

    35kV

    ≥410

    ≥810

    ≥1013

    ≥1256

    66kV

    ≥720

    ≥1450

    ≥1813

    ≥2248

    110kV

    ≥1010

    ≥2520

    ≥3150

    ≥3906

    132kV

    ≥1160

    ≥2900

    ≥3625

    ≥4495

    150kV

    ≥1350

    ≥3400

    ≥4250

    ≥5270

    220kV

    ≥2010

    ≥5040

    ≥6300

    ≥7812

    330kV

    ≥2360

    ≥7260

    ≥9075

    ≥11253

    380kV

    ≥3323

    ≥8400

    ≥10500

    ≥13020

    500kV

    ≥3980

    ≥11000

    ≥13750

    ≥17050



    五、Insulation requirements for the primaries please see table 3.

    Rated voltage (kV) 35 66 110 132 150 220 330 380 500
    power-frequency withstand voltage (r.m.s) (kV) 95 160 230 275 325 460 510 630 740
    The wet test for the current transformer of power-frequency   withstand (r.m.s) (kV) 95 160 230 275 325 460 510 630 740
    Rated switching impulse withstand voltage (peak) (kV) / / / / / / 950 1050 1175
    Rated lightning impulse withstand voltage (peak) (kV) 200 325 550 650 750 1050 1175 1425 1550
    chopped ligtning impulse voltage (peak) (kV) 230 343 635 750 865 1208 1351 1640 1930
    power-frequency withstand voltage at the SF6 gas pressure 0MPa   (kV) 30 54 95 109 128 190 272 315 413
    Partial discharge level prestressing   performed voltage (r.m.s) (kV) 76 112 184 220 260 368 408 504 592

    Test voltage 1.2Um or Um (kV)

    PD≤10pC

    49 87 126 145 170 252 363 420 550

    Test voltage 1.2Um/√3 (kV)

    PD≤5pC

    28 50 87 100.5 118 174 252 291 381



    六、Mechanical requirements for the primary terminals please see table 4.

    Rated voltage (kV)

    35

    66

    110

    132

    150

    220

    330

    380

    500

    Mechanical requirements (horizontal of two directions and   vertical) (N)

    500

    1000

    1000

    1000

    1250

    1250

    1500

    1500

    Applied to the primary terminals with duration (s)

    60

    60

    60

    60

    60

    60

    60

    60



    七、Dimensions of the voltage transformers

    The outline and installation dimensions please see drawing 1, and the dimensions of the primary termanils please see table 5.

    Rated voltage(kV)

    H(mm)

    W1(mm)

    W2(mm)

    D(MM)

    35

    1050

    335

    335

    16

    66

    1500

    400

    400

    20

    110

    1905

    450

    450

    20

    132

    2150

    450

    450

    20

    150

    2350

    450

    450

    20

    220

    3470

    600

    600

    24

    330

    4150

    600

    600

    24

    380

    4720

    680

    680

    32

    500

    5920

    750

    750

    32

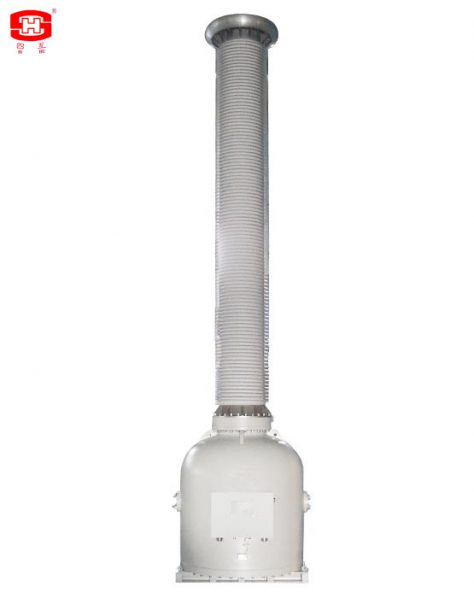

    The demonstration of the ivt transformer

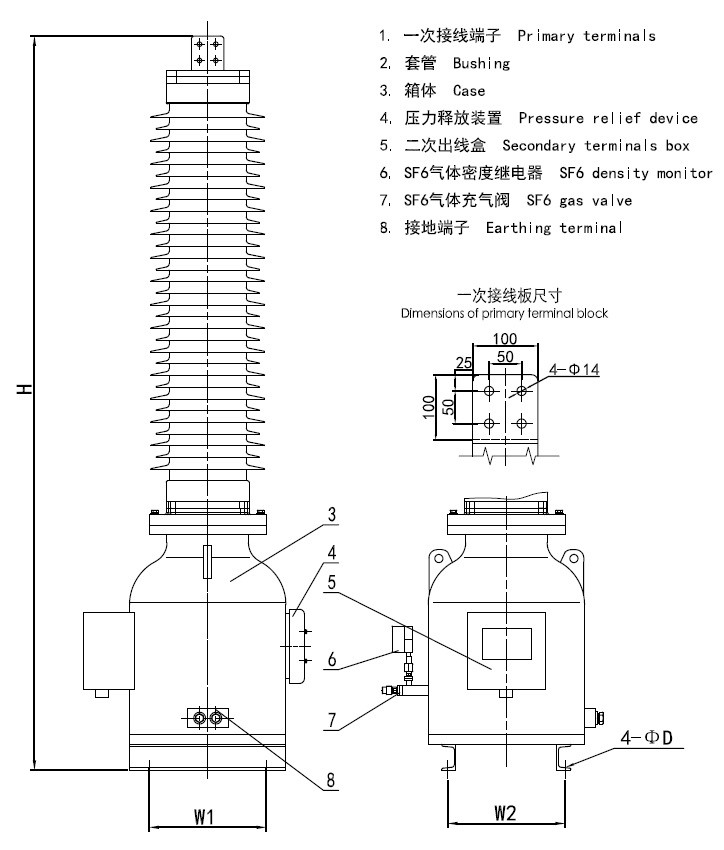

    Drawing 1  JDQXF-□W outline and installation dimensions
